The Challenge of Sludge Buildup
The accumulation of undigested solids (Sludge) is a pervasive operational challenge that significantly compromises the performance and economic viability of anaerobic digestion (AD). This layer of sludge—composed of grit, fibrous material, and inert microbial biomass—forms primarily due to feedstock recalcitrance and suboptimal process conditions.
The buildup of undigested solids has several critical consequences:
● Reduced Hydraulic Efficiency: The accumulation of solids reduces the digester’s active volume, short-circuiting flow and disrupting the overall mixing dynamics within the system. This can result in uneven distribution of feedstock and a reduction in the system's efficiency.
● Lower Biogas Yield: As undigested solids encapsulate biodegradable organic matter, they limit microbial access to nutrients, directly reducing the potential for methane production and, consequently, biogas yield.
● Increased Operational Costs: The accumulation of these solids necessitates more frequent and costly maintenance, cleaning, and system downtime. This not only reduces operational efficiency but also increases the long-term financial burden on AD facilities.
Reducing undigested solids is critical for long-term AD performance. Effective solutions need to address both the feedstock and the digestion process; especially, the microbial community that drives organic matter breakdown.
Root Causes of Undigested Solids Accumulation
Incomplete degradation of solids in anaerobic digestion usually comes from two main areas: what the feedstock is made of, and how the process is designed and operated.
1. Feedstock-Related Causes
Indigestible Structural Polymers: These are the primary drivers of persistent solids in AD systems.
● Lignin: This complex, non-biodegradable polymer serves as a protective shield around cellulose and hemicellulose in feedstocks like straw, wood chips, and other plant materials. Lignin prevents microbial enzymes from accessing and breaking down the more digestible components of the material.
● Crystalline Cellulose: The tightly packed, hydrogen-bonded structure of crystalline cellulose makes it highly resistant to enzymatic attack by the standard microbial community in a digester, impeding efficient breakdown.
Physical Barriers: Feedstocks with large particle sizes present few attachment points for hydrolytic bacteria, significantly slowing the initial hydrolysis phase.
2. Process-Related Causes
Inadequate Hydrolysis: Hydrolysis is the critical step in anaerobic digestion. If temperature, pH, or the microbial community is suboptimal, hydrolysis can be impaired, stalling the entire digestion process. Without effective hydrolysis, the organic matter is not adequately broken down into simpler forms that the microbial community can further degrade by methanogens.
Suboptimal Process Engineering:
● Short Hydraulic Retention Time (HRT): If solids are flushed out of the digester before microbes have sufficient time to degrade them, this leads to incomplete digestion and the accumulation of undigested solids.
● Poor Mixing: Ineffective mixing within the digester can create dead zones where solids settle and form thick, stagnant layers. These layers are inaccessible to the active microbial community, reducing the overall efficiency of the digestion process.
Microbial Inhibition:
● Volatile Fatty Acid (VFA) Accumulation: Overloading or temperature shocks cause acidogens to outpace methanogens. The resulting VFA buildup lowers pH, inhibiting methanogens and creating a destabilizing feedback loop.
● Imbalanced Carbon-to-Nitrogen (C/N) Ratio: A high C/N ratio (e.g., sawdust) starves microbes of nitrogen. A low C/N ratio (e.g., manure) leads to ammonia toxicity. Both stall degradation.
Quick diagnosis guide — root cause vs. symptoms vs. primary fix:
|
Root cause |
What it looks like |
Primary fix |
|
Lignin / crystalline cellulose in feedstock |
High VS in effluent, fibrous sludge |
Pretreatment + BGEH |
|
Large particle size |
Slow hydrolysis, solids accumulation |
Mechanical size reduction |
|
Short HRT |
Solids flushed before full degradation |
Process design review |
|
Poor mixing / dead zones |
Thick sludge layers, uneven gas output |
Mixing optimization + BGE1 |
|
VFA accumulation / pH drop |
Low pH, reduced methane, foaming |
BGE1 + BGEM |
|
Imbalanced C/N ratio |
Inhibited microbial activity |
Feedstock blending + BGE series |
Methodologies to Mitigate Sludge Accumulation
A comprehensive strategy integrates pretreatment techniques to weaken solid structures with biological enhancements to complete the degradation process.
1. Physical and Chemical Pretreatment
- Mechanical size reduction: Grinding or milling feedstock increases surface area, making it more accessible to microbial colonization and enzymatic breakdown.
- Thermal & chemical pretreatment: Heat or alkali/acid treatments disrupt the lignocellulosic matrix, solubilizing lignin and hemicellulose and preparing feedstock for more efficient microbial degradation.
2. Biological Enhancement through Bioaugmentation
Bioaugmentation means adding targeted microbial consortia and enzymes to fix specific bottlenecks in the digestion process. Instead of only changing hardware or pretreatment, you strengthen the biology so it can:
● Break down tougher solids more completely
● Stay stable under higher loading
● Convert more of the organic matter into methane
2.1 How Bioaugmentation Helps
● Targeting Recalcitrant Structures:
o Hydrolytic Consortia: Adding bacteria like Clostridium sp and Bacillus sp can significantly improve hydrolysis. These bacteria produce large quantities of cellulase and xylanase enzymes, directly breaking down the tough cellulose and hemicellulose polymers into more digestible sugars.
o Lignin-Modifying Bacteria: Certain bacteria, such as Bacillus strains, can produce enzymes like laccases and peroxidases that partially depolymerize lignin. This process "opens up" the feedstock, making the digestible cellulose and hemicellulose more accessible for further microbial attack.
● Stabilizing the Microbial Process:
o Methanogens: Adding more robust methanogens that can function across a wider pH range helps to reduce the accumulation of volatile fatty acids (VFAs), stabilize the digester's pH, and create a more favorable environment for methanogens. This, in turn, supports efficient methane production.

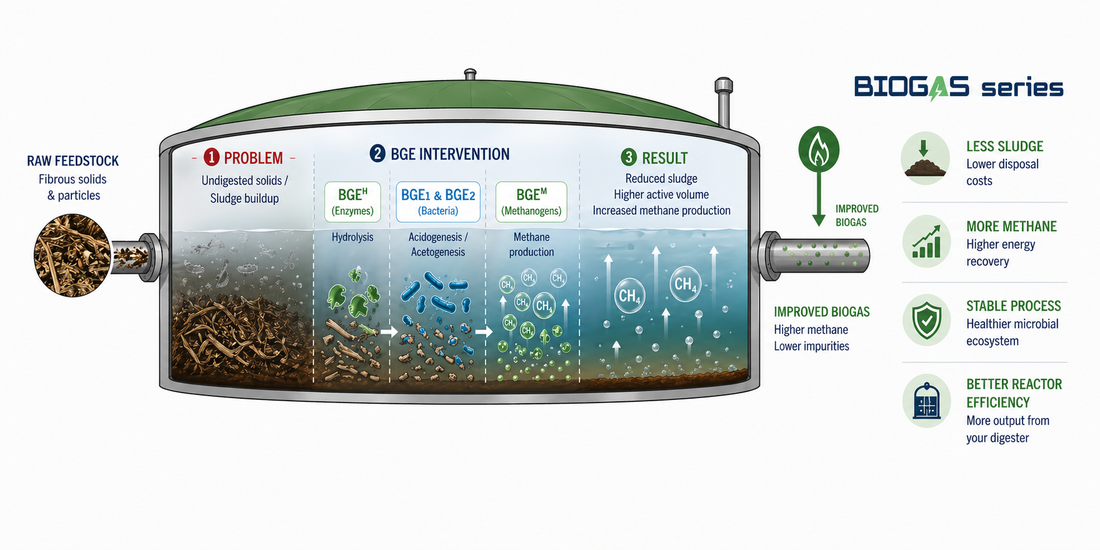

2.2. Practical Implementation: BGE Series from ELI Biosciences
The BGE Series from ELI Biosciences is a specialized line of biological products designed to enhance sludge degradation in anaerobic digestion (AD) systems. By combining advanced microbial strains and enzymes, these products optimize key AD processes, improving digestion efficiency, biogas yield, and methane production across all stages of the process.
● BGE1 & BGE2: Bacterial blends that accelerate hydrolysis, acidogenesis, and acetogenesis, boosting overall biogas production.
● BGEH: An enzyme-based formulation designed to efficiently degrade cellulose, hemicellulose, and lignin in challenging feedstocks.
● BGEM: A robust methanogen-enriched formula aimed at increasing the methane content in the biogas.
How this ties back to sludge reduction — by combining the right BGE products with good operating practice, plants can:
● Reduce Solids & Foaming: Better hydrolysis and fiber breakdown mean less sludge accumulation and fewer dead zones.
● Improve Process Stability: A more resilient microbial community can handle changes in feedstock and loading, reducing the risk of upsets that lead to poor degradation.
Use reactor volume more effectively: As less inert sludge builds up, more of the digester volume stays active, supporting higher biogas yield from the same installed capacity.
Summary
Sludge buildup in anaerobic digesters is not inevitable. It is usually a sign that either the feedstock is hard to digest in its current form, process conditions don't allow enough time or contact for degradation, or the microbial community is inhibited or incomplete.
A systematic approach to solids reduction starts with:
· Diagnosing the main cause — feedstock characteristics vs. process design and operation.
· Applying the right tools — size reduction and pretreatment to open up the material.
· Strengthening the biology — using targeted bioaugmentation such as the BGE Series to push hydrolysis further and stabilize methane production.
When physical and chemical pretreatments are combined with the right biological program, a sluggish, solids-limited digester can become a more efficient, higher-yield system — reducing sludge buildup, unlocking more biogas from the same feedstock, and supporting long-term stable operation.
