Executive Summary
In late March 2026, the Dickinson College anaerobic digestion (AD) system experienced a severe process upset characterized by volatile fatty acid (VFA) accumulation, declining pH stability, methane suppression, and near-complete loss of biogas-driven Combined Heat and Power (CHP) generation.
A structured two-phase intervention using BGE serial products (BGEM and BGE1/BGE2), combined with immediate feedstock correction, restored full biological function within approximately 18 days, significantly faster than the 4-8 weeks typically observed with chemical buffering alone in comparable severe upsets. System stability was restored, methane quality improved beyond historical baseline levels, and CHP power generation exceeded pre-upset performance by approximately 20%.
Without biological intervention, recovery times for a severe upset of this magnitude are typically:
| Upset Severity | Without Intervention | Notes |
|---|---|---|
| Mild (FOS/TAC ~0.5-0.6) | 2-6 weeks | Usually self-correcting with feedstock adjustment |
| Moderate (FOS/TAC 0.6-0.8) | 1-3 months | Requires active management and buffering |
| Severe (FOS/TAC >0.80, pH collapse) | 3-6+ months or permanent failure | Most operators report 4-8 weeks, even with chemical buffering; re-inoculation is often required |
The Dickinson College recovery of 18 days positions BGE Serial Products as a material improvement over standard industry response protocols.
1. Facility Profile
The Dickinson College Anaerobic Digestion Facility is a co-digestion unit located at the College Farm in Boiling Springs, Pennsylvania. Operated in partnership with neighboring Triple L Farm dairy, it is one of the smallest commercial-scale digesters in Pennsylvania and a national model for mid-scale AD systems. The system converts agricultural manure and food residuals into renewable biogas energy, designed to optimize the carbon-to-nitrogen ratio and gas yield.
| Parameter | Detail |
|---|---|
| Working Volume | 115,000 gallons |
| Daily Throughput | ~3,000 gallons/day |
| Hydraulic Retention Time (HRT) | 35-45 days |
| Feedstock | ~1:1 blend of dairy cattle manure and food waste |
| Digester Type | Complete-mix cement tank, 50 ft diameter, 10 ft tall, buried 8 ft in ground |
| CHP Unit | 50 kW TEDOM engine (biogas-driven combined heat and power) |
| Expected Annual Output | 200,000-300,000 kWh renewable electricity |
| Byproducts | Liquid digestate (crop fertilizer) + solid fiber (cow bedding) |
2. Upset Characterization
Baseline Performance (Mar 22-27)
The digester was operating normally prior to the upset, with strong buffering capacity, healthy methane production, and stable power generation.
| Parameter | Value | Status |
|---|---|---|
| FOS/TAC | 0.25-0.28 | Stable ✓ |
| pH | 7.95-8.22 | Stable ✓ |
| CHP Output | 25-26 kW | Normal ✓ |
| CH₄ % in biogas | 54% | Normal ✓ |
Process Failure Phase (Mar 28-Apr 7)
Excess loading of rapidly degradable substrates - high-energy commercial produce waste and oils triggered excessive acidogenesis. VFA accumulation overwhelmed alkalinity reserves and inhibited methanogens.
| Parameter | Upset Value | Normal Range | Deviation |
|---|---|---|---|
| FOS/TAC | 0.80 | <0.40 | 100% above threshold |
| pH | 7.30 | 7.45-8.20 | Below stable range |
| CHP Output | 0-10 kW | ~25 kW | Near-complete loss |
| CH₄ % in biogas | 50.6% | >54% | Suppressed methanogens |
Without intervention, continued acidification would have led to complete methanogenic failure. A severe upset of this magnitude (FOS/TAC 0.80) typically requires 3-6+ months to self-correct, or may result in permanent methanogenic failure requiring full re-inoculation.
3. Corrective Action & Product Application Protocol
Immediate Operational Changes
- Commercial produce and oil inputs stopped immediately
- Feeding restricted to manure plus minimal food waste
- BGE biological recovery program initiated
Treatment Schedule
| Date | Product | Dose | Purpose |
|---|---|---|---|
| Apr 3 | BGEM | 30 gal | Crisis response |
| Apr 5 | BGEM | 30 gal | Crisis response |
| Apr 7 | BGEM | 30 gal | Crisis response |
| Apr 17 | BGEM | 30 gal | Reinforcement |
| Apr 24 | BGEM | 30 gal | Reinforcement |
| Apr 17 | BGE1 + BGE2 | 5 each | Targeted support |
| Apr 20 | BGE1 + BGE2 | 5 each | Support |
| Apr 22 | BGE1 + BGE2 | 5 each | Support |
| Apr 23 | BGE1 + BGE2 | 5 each | Support |
Total treatment: 150 gal BGEM + 40 units BGE1/BGE2
Application Strategy
- Phase 1 - Emergency Stabilization (Apr 3-7): High-dose BGEM application (30 gal every 2 days) during acute crisis. This phase focused on supporting rapid VFA reduction and restoration of buffering stability through bioaugmentation of robust and healthy methanogens.
- Phase 2 - Reinforcement (Apr 17-24): Combined BGEM plus BGE1/BGE2. The secondary products provided specialized syntrophic consortia to support microbial community recovery and process stabilization above baseline performance.
4. Recovery Performance Analysis
FOS/TAC Recovery
The FOS/TAC ratio increased rapidly from 0.27 on March 27 to a peak of 0.80 on April 5 (100% above the critical threshold of 0.40). Following the first BGEM application on April 3, the ratio initially increased slightly before beginning a steady decline. By April 15, it had dropped to 0.36, crossing below the critical 0.40 threshold just 12 days after initial treatment. The ratio continued declining, reaching 0.27 by April 23 (32% below the critical threshold).
FOS/TAC emerged as a key early-warning KPI for process stability, providing 2-4 days' advance indication ahead of measurable pH decline. It proved to be the most reliable real-time indicator throughout the upset and recovery, offering direct evidence of VFA dynamics and alkalinity balance.
pH Dynamics
pH remained stable between 7.95 and 8.23 from March 22 to March 30, indicating a well-buffered and stable digester prior to upset. During onset (March 30-April 3), pH gradually declined from 8.2 to 7.56 as VFAs accumulated, while alkalinity temporarily buffered a sharper drop. Following BGEM application, pH continued declining slightly to 7.30 by April 7 before entering early recovery. By April 13-23, pH stabilized at 7.4-7.6, the optimal anaerobic digestion operating range.
Importantly, pH alone did not fully reflect the severity of the upset, as buffering capacity masked the acidification. Its stabilization confirmed recovery but lagged behind underlying process changes, underscoring FOS/TAC as the superior early-warning indicator.
Methane Content Recovery
Methane concentration remained stable at 54.1-54.3% during the pre-upset period (March 22-28). During the upset phase, it dropped to a low of 50.6%, reflecting process stress from acid accumulation and reduced methanogenic activity. Following BGEM application, methane content rose steadily from 51.2% to 64.6% between April 3 and April 14 - clear evidence of recovering methanogen function. After April 14, levels remained elevated at 63.8-64.3% before modest stabilization at 59.8-61.4%, well above baseline.
CHP Output Recovery
CHP output averaged 25 kW during the pre-upset period. From March 27 to April 3, output declined sharply from 27 kW to 10 kW, then reached 0 kW on April 5 - complete loss of usable biogas. Following the first BGEM application, output recovered quickly to 10 kW by April 7. Between April 7-15, CHP stabilized at 10-14 kW as biological recovery progressed. From April 15-23, output climbed rapidly from 14 to 29 kW. By April 22, CHP reached 26 kW approaching the pre-upset baseline of 25-26 kW - marking the effective end of the recovery period, approximately 18 days from the first product application. Peak recovery was confirmed on April 24 at 30 kW (120% of the pre-upset baseline) - indicating not only full recovery but enhanced digester performance.

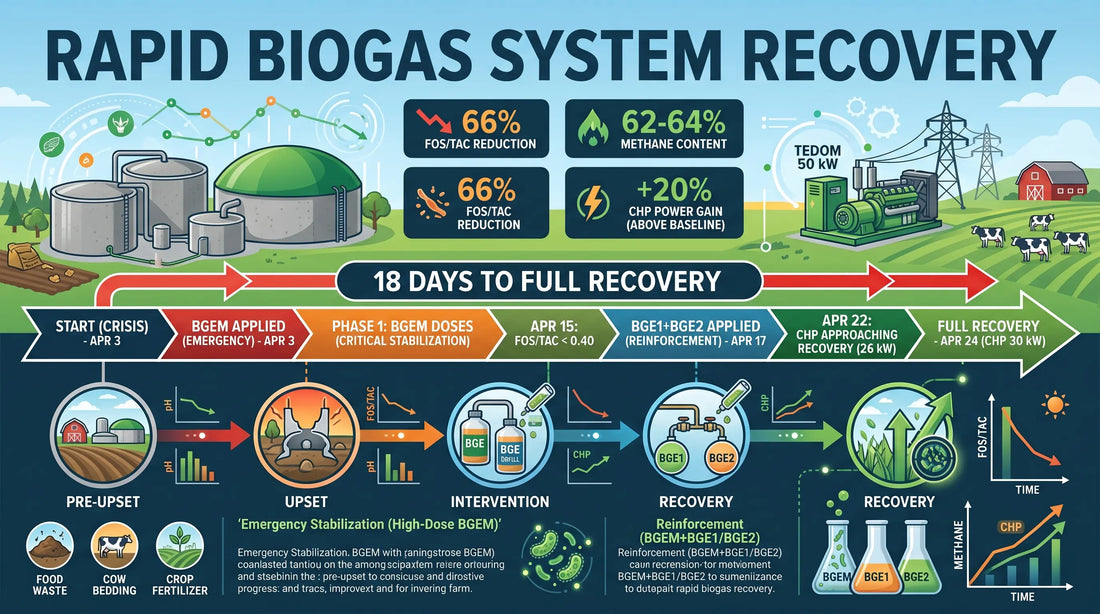

Recovery Timeline Summary
| Phase / Date | Status | Detail |
|---|---|---|
| Mar 22-27 | Stable Baseline | FOS/TAC 0.25-0.28 | pH 8.0-8.2 | CHP 25-26 kW | CH₄ 54% |
| Mar 28-Apr 7 | Process Upset | FOS/TAC peaked at 0.80 | pH dropped to 7.30 | CHP dropped to 0 kW | CH₄ 50.6% |
| Apr 3-7 | Phase 1: Emergency (BGEM) | 30 gal BGEM every 2 days - supporting rapid VFA reduction and restoration of buffering stability through bioaugmentation of robust and healthy methanogens. |
| Apr 7-15 | FOS/TAC Crosses Threshold | FOS/TAC drops below 0.40 by Apr 15 - 12 days post first BGEM dose. |
| Apr 17-24 | Phase 2: Reinforcement (BGE1 + BGE2) | Combined BGEM + BGE1/BGE2 protocol - supporting microbial community recovery and process stabilization. |
| Apr 22 | CHP Approaching Recovery | CHP reached 26 kW - approaching pre-upset baseline | FOS/TAC stable at 0.27 | ~18 days from first application. (Recovery period measured from first product application on Apr 3 to CHP approaching pre-upset levels on Apr 22). |
| Apr 24 | ✓ Full Recovery | FOS/TAC 0.27 | pH 7.45-7.6 | CHP 30 kW (120% of baseline) | CH₄ 62-64% |
5. Conclusions
| Finding | Detail |
|---|---|
| BGE reversed severe methanogenic inhibition in 18 days | 2-3x faster than typical chemical buffering alone (4-8 weeks). BGEM supported rapid VFA reduction; BGE1/BGE2 aided microbial community recovery above pre-upset baseline. Full methanogenic failure was averted. |
| Two-phase protocol proved optimal | Phase 1 BGEM provided rapid biological stabilization; Phase 2 BGE1/BGE2 supported microbial community recovery and drove performance above historical baselines. |
| FOS/TAC emerged as a key early-warning KPI | Provided 2-4 days' advance indication ahead of measurable pH decline enabling rapid response before CHP was fully affected. |
| Treatment followed a predictable lag sequence | FOS/TAC decline: 4-6 days post first dose. CHP remained suppressed ~4 days before recovery, confirming it as the trailing performance indicator. |
| Recovery exceeded pre-upset performance | CHP at 120% of baseline; CH₄ above 60% indicating enhanced post-treatment microbial efficiency, not mere restoration. |
6. Recommendations for AD Operators
| Recommendation | Rationale |
|---|---|
| Continuous FOS/TAC monitoring; target <0.40 | Provides 2-4 days' advance indication before pH decline; enables rapid response before CHP is affected. |
| Maintain emergency BGEM inventory on-site | Rapid deployment during overload events is critical; delays of 2-3 days worsen outcomes. |
| Apply BGE1/BGE2 during recovery plateau | Supports microbial community recovery and enhances CH₄/CHP performance above baseline. |
| Review feedstock loading protocols | Overloading with rapidly degradable, high-energy substrates (produce, oils) was the root cause of this upset. |
| Establish FOS/TAC response thresholds with action plan | 0.30-0.40: monitor closely | 0.40-0.60: reduce loading + initiate BGEM | >0.60: emergency BGE protocol |
