Hydrogen sulfide (H₂S) is almost always present in biogas. It forms when sulfur-containing compounds in feedstocks are broken down by sulfate-reducing bacteria under anaerobic conditions, and at higher concentrations it corrodes equipment, inhibits methane production, and creates serious safety risks. Whether you're evaluating treatment options or looking to strengthen your existing removal train, this guide covers the full toolkit: where H₂S comes from, what concentration levels matter, and which physical, chemical, and biological methods work best.
In this article we’ll look at:
● Where sulfur and H₂S come from in anaerobic digestion
● What H₂S concentration ranges matter for biology, engines, and biomethane
● The main physical, chemical, and biological removal methods
● How biological tools like the BGE Series fit into a complete H₂S control strategy
Where Does Hydrogen Sulfide Come From in AD?
Sulfur enters anaerobic digestion (AD) systems through multiple pathways, contributing to the formation of hydrogen sulfide (H₂S), a toxic and corrosive gas. Key sources include:
● Protein-rich feedstocks: Breakdown of sulfur-containing amino acids like cysteine and methionine releases H₂S.
● Sulfates in feedstocks or water: Sulfates from agricultural or industrial inputs and sulfate-rich water contribute to H₂S production.
● Other sulfur compounds: Organic compounds such as sulfonates, thiols, and sulfides degrade into H₂S during digestion.
In the anaerobic environment, sulfate-reducing bacteria (SRB) use sulfate as a terminal electron acceptor and convert it to H₂S, competing with methanogens for substrates.
Why H₂S Is a Problem in Biogas Systems
Hydrogen sulfide (H₂S) is a toxic, corrosive, and foul-smelling gas, with typical concentrations ranging from 50 to 5,000 ppm. Its presence significantly impacts biogas quality, system performance, equipment lifespan, and worker safety. Key challenges include:
-
Methane Inhibition:
H₂S is toxic to methanogens, reducing methane production. Severe inhibition occurs at 3000 ppm, with potential toxicity starting at levels above 1,000-1500 ppm. -
Equipment Corrosion and OPEX:
H₂S causes corrosion in pipelines, tanks, and CHP engines. Internal combustion engines CHP are affected at 200–500 ppm, while safe operation is generally below 200 ppm. -
Health and safety Risks:
Even at 3–5 ppm, H₂S poses health hazards, causing eye and respiratory irritation. Higher exposures can lead to severe health effects, highlighting the need for strict safety measures. -
Compliance and grid specs
For CHP engines, biogas usually needs to be treated to <100–200 ppm H₂S.
For biomethane/RNG, H₂S is typically reduced to <5 ppm to protect downstream infrastructure and meet gas grid requirements.
Target H₂S Levels for Safe Operation
Maintaining the following thresholds protects microbial health, equipment integrity, and compliance with environmental and workplace safety standards:
|
Application area |
Recommended H₂S level |
|
Within AD system |
< 1,000–1,500 ppm |
|
For CHP engine use |
< 200 ppm (up to 500 ppm acceptable) |
|
For biogas upgrading to biomethane |
< 3–5 ppm |
H₂S Removal Techniques
1. Micro-aeration
Micro-aeration involves the controlled injection of small amounts of oxygen into the digester. This reacts with H₂S, converting it to elemental sulfur (S⁰) or sulfate (SO₄²⁻) through oxidation; a simple, low-cost method achieving removal efficiencies of up to 96%.
Micro-aeration must be carefully managed: overdosing oxygen can inhibit methanogenic archaea, reducing methane production, and may cause foaming in digesters handling protein- or fat-rich substrates. Precise dosing and continuous monitoring are essential..
2. Chemical Precipitation (Iron Salts)
Chemical precipitation is one of the most commonly applied methods for controlling sulfide levels in anaerobic digestion (AD) systems. This technique involves the addition of iron salts, such as ferric chloride (FeCl₃), which chemically react with dissolved sulfide ions (S²⁻ or HS⁻) forms insoluble iron sulfide (FeS) compounds that precipitate FeS out of the solution. These precipitates can then be removed through sedimentation.
The efficiency of sulfide removal via chemical precipitation is highly dependent on operational factors such as pH, redox conditions, and mixing intensity. Under optimal conditions, particularly at a neutral to slightly alkaline pH, the removal efficiency can range from 60% to as high as 99%.
Despite its effectiveness, this method has some limitations. The continuous requirement for chemical dosing represents a recurring operational cost, and overuse may lead to excess iron in the system, which could impact downstream processes. Furthermore, the generation of additional sludge (from FeS and associated by-products) increases the volume of solids that must be disposed of, potentially raising treatment costs and environmental burdens.
3. Wet Scrubbing
In wet scrubbing, raw biogas passes through a column where it contacts an alkaline solution — typically sodium hydroxide (NaOH). H₂S is absorbed and neutralized, producing water-soluble salts such as sodium sulfide (Na₂S). Removal efficiencies exceed 95%, making wet scrubbing ideal for high-purity biogas applications.
The method is energy-intensive, requires continuous chemical dosing, and generates wastewater containing sulfide salts. It is most cost-effective for medium to large-scale facilities.
4. Adsorption Using Activated Carbon
Activated carbon physically adsorbs H₂S molecules from the gas stream. Effectiveness is enhanced when the carbon is impregnated with metal oxides (iron, copper, or zinc), combining physical adsorption and chemical reaction. Removal efficiencies can exceed 99% — particularly effective as a polishing step or in small- to medium-scale systems.
Limitations include media saturation over time (requiring replacement or regeneration), and cost/safety considerations around spent carbon disposal.
5. Biological Desulfurization
5.1 How biological desulfurization works
Biological desulfurization uses sulfur-oxidizing bacteria (SOB) and denitrifying bacteria (DNB) under anoxic conditions. Instead of using oxygen, these microbes use nitrate (NO₃⁻) as an electron acceptor to oxidize H₂S to elemental sulfur or sulfate.
Sulfur-oxidizing bacteria (SOB): Oxidize H₂S to elemental sulfur (S⁰) or sulfate (SO₄²⁻) using nitrate (NO₃⁻) as an electron acceptor. Key species include: Thiobacillus denitrificans; Thiocapsa roseopersicina (purple sulfur bacteria) and Rhodopseudomonas palustris (purple non-sulfur bacteria). At anaerobic condition,
● Partial Oxidation:
H₂S + NO₃⁻ → S⁰ + NO₂⁻ + H₂O
● Complete Oxidation:
5 H₂S + 8 NO₃⁻ + 8 H⁺ → 5 SO₄²⁻ + 4 N₂ + 4 H₂O
The other group of bacteria involving desulfurization is denitrifying Bacteria (DNB), it can reduce NO₃⁻ to N₂, working synergistically with SOB at anaerobic digestion. The key DNB species include Paracoccus denitrificans and Pseudomonas stutzeri.
● Reduce NO₃⁻ → N₂
To ensure successful biological desulfurization in anaerobic digesters, the following critical success factors must be carefully managed:
● Accurate nitrate dosing
● Balanced microbial community
● Monitoring of H₂S levels, pH, and temperature
Typical performance: H₂S removal efficiencies of 80–95%, depending on nitrate dosing, biomass, and operating conditions.. This approach is attractive because it works inside the same anaerobic environment as methanogens. There is no need for aeration or large chemical doses, and it can reduce reliance on other H₂S removal technologies.

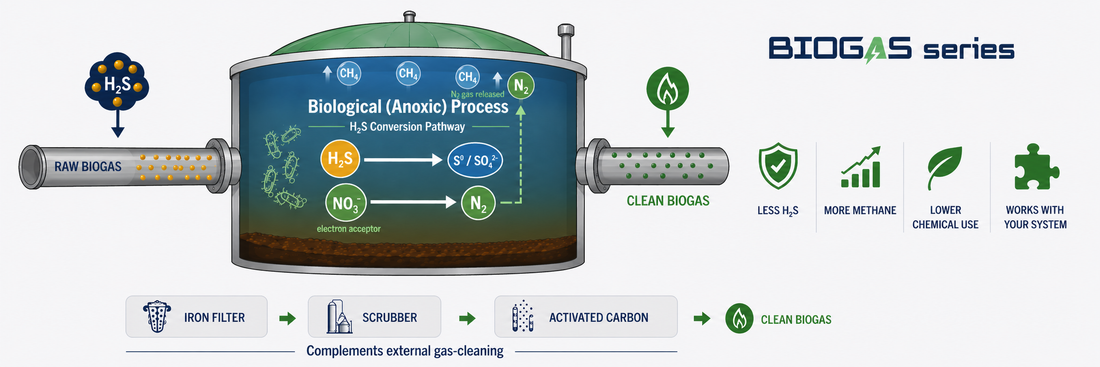

5.2. How the BGE Series implements biological desulfurization
The BGE Series from ELI Biosciences is a targeted biological desulfurization program that uses selected sulfur-oxidizing and denitrifying bacteria to enhance H₂S removal in anaerobic digestion systems. The formulations contain selected sulfur-oxidizing and denitrifying bacteria that work under anoxic conditions to:
● Convert hydrogen sulfide to elemental sulfur or sulfate
● Use nitrate as an electron acceptor, reducing it to nitrogen gas
● Protects methanogens from sulfide toxicity, maintaining stable methane production
Key Benefits for operators
● Reduced H₂S in Biogas: Lower corrosion risk for engines, pipes, and concrete infrastructure.
● Improved Methane Yield: By mitigating sulfur inhibition, methanogens can function more effectively, boosting methane production.
● Lower Chemical Use: By leveraging biological activity, the need for chemical dosing (e.g., iron salts or oxygen) is significantly reduced.
● Fits with existing infrastructure: Works inside the digester and complements external gas-cleaning steps (iron filters, scrubbers, activated carbon).
Summary
Effective H₂S control is essential for safe, efficient, and profitable anaerobic digestion. Physical and chemical methods such as micro-aeration, iron dosing, wet scrubbing, and activated carbon each have a role, depending on plant size, H₂S load, and budget.
When you combine these tools with targeted biological approaches that work inside the digester, you can:
● Cut H₂S at the source
● Protect engines and infrastructure
● Stabilize methane production and improve biogas quality
The BGE Series is designed to support that biological side of H₂S management while working alongside your existing gas-cleaning equipment.
